Canon EF 17-40mm f/4L USM Lens
Canon EF 17-40mm f/4L USM
The used Canon EF 17-40mm f/4L USM lens occupies a rare position in the Canon lineup: a full L-series wide-angle zoom that delivers weather-sealed construction, Ring USM autofocus, and a constant f/4 aperture at a price point that has made it one of the brand’s most enduring and best-selling lenses since its introduction in 2003. Whether you’re shooting expansive landscapes on a full-frame body or using it as a versatile general-purpose wide zoom on an APS-C DSLR, a used Canon EF wide-angle zoom lens of this calibre is a rare find at a sensible price.
Shipping & Returns
Tracking information provided. Returns accepted if products received damaged or inoperable. No shipping to the USA while tariffs are active. Fast shipping from Vancouver Island, BC. Please review the full Returns Policy before purchasing.
Condition
This used Canon EF 17-40mm f/4L USM is in excellent condition throughout. The glass is clean and clear, with no fog, scratches, or haze, and optical performance is unaffected by any cosmetic wear. The barrel and finish show no visible signs of use, the focus ring turns smoothly, and the metal lens mount is untarnished and free of scratches. Autofocus has been tested and confirmed fully operational, engaging quickly and quietly as expected of Canon’s Ring USM system.
Overview
Canon introduced the EF 17-40mm f/4L USM in 2003, developed as a higher-specification successor to the EF 20-35mm f/3.5-4.5 USM. The goal was a professional-grade ultra-wide zoom with an expanded range, improved optical construction, and the full L-series treatment: weather sealing, Ring USM autofocus, and optics designed for both film and digital SLRs. It was Canon’s most affordable L-series lens at launch and has remained so for much of its production life, making it a gateway lens into the professional Canon ecosystem.
The Canon EF 17-40mm f/4L USM sits at the wide end of Canon’s f/4L zoom trio, complementing the EF 24-105mm f/4L IS USM and the EF 70-200mm f/4L IS USM. On a full-frame body the 17mm wide end delivers a 104° diagonal angle of view — genuinely ultra-wide. On an APS-C body with a 1.6x crop factor, the focal range becomes approximately 27-64mm equivalent, a useful general-purpose range. Canon Europe lists the lens weight at 500g with dimensions of 83.5mm diameter × 96.8mm length. The lens does not change size when zooming or focusing.
Canon EF 17-40mm Optical Construction
The EF 17-40mm f/4L USM uses 12 elements arranged in 9 groups. Canon’s optical design incorporates three aspherical elements — one high-precision moulded glass aspherical element and two replica aspherical elements — to manage the complex aberrations inherent in ultra-wide zoom designs. A single Super UD (Ultra-low Dispersion) glass element addresses chromatic aberration of magnification, which is particularly prone to appearing at the edges of wide-angle lenses as colour fringing.
The minimum focusing distance is 0.28m (approximately 11 inches) throughout the entire zoom range, not just at one focal length — a practical feature for close-up environmental context shots. Maximum magnification is 0.24x, achieved at 35mm. The diaphragm uses 7 blades arranged in a circular configuration. Canon used exclusively lead-free glass elements throughout this lens, an environmental consideration noted at the time of its launch. Optics are coated for optimised performance with digital sensors.
Autofocus Performance of the Canon EF 17-40mm f/4L USM
Autofocus is driven by Canon’s Ring USM (Ultrasonic Motor), the same motor type used in Canon’s top professional lenses. Ring USM provides fast, near-silent focus acquisition — Canon rated the 17-40mm as having the fastest AF in its ultra-wide zoom class at the time of introduction. Focus is internally driven; the front element does not rotate during autofocus or manual focus operation, which is important for users of polarising filters (a commonly used accessory on wide-angle lenses for landscape work).
Full-time mechanical manual focus override is built in — the focus ring can be turned at any time without switching an AF/MF toggle on the body or lens. This is the standard behaviour for Ring USM lenses. Focus response is smooth and well-damped for manual adjustment. There is no focus distance window on this lens.
Build Quality and Handling
As an L-series lens the EF 17-40mm f/4L USM carries Canon’s professional-grade build standards. The barrel is sealed against dust and moisture at the lens mount, zoom ring, and focus ring — though Canon’s documentation notes that the front element area is not sealed. The lens body does not extend during zooming or focusing, maintaining a constant 83.5mm diameter × 96.8mm length profile. Canon Europe’s current specification sheet lists the weight at 500g.
The filter thread is 77mm, a size Canon standardised across many of its L-series lenses, which means a single set of 77mm filters serves multiple lenses in a professional kit. The zoom ring is the main handling control and operates through a short, smooth throw. The included EW-83E petal-type lens hood clips on via bayonet mount and is supplied with the lens. There is no zoom lock switch, which is typical for wide-angle zooms of this design. Build material is a combination of engineering plastics and metal internal components consistent with other Canon L-series zooms of its era.
Compatible Camera Bodies
The Canon EF 17-40mm f/4L USM uses the Canon EF mount and is compatible with every Canon EOS EF-mount DSLR body ever produced — both full-frame and APS-C. On full-frame bodies it delivers its full ultra-wide angle of view. On APS-C bodies the 1.6x crop factor produces an effective 27-64mm equivalent range.
For Canon mirrorless EOS R-series bodies (EOS R, RP, R5, R6, R7, R8, R10, R50, and others), the lens is compatible via Canon’s EF-EOS R Mount Adapter or the EF-EOS R Mount Adapter with Control Ring. All autofocus and image stabilisation functions operate normally through the adapter. A representative list of compatible EF-mount DSLR bodies includes:
- Full-frame: EOS 5D Mark II, III, IV; EOS 6D, 6D Mark II; EOS-1D X, 1D X Mark II, III
- APS-C: EOS 7D, 7D Mark II; EOS 90D; EOS 80D; EOS Rebel T8i, T7i, T7, SL3, and earlier models in these lines
Image Quality
On full-frame bodies the 17-40mm f/4L performs strongly at moderate apertures. At f/4 wide open, centre sharpness is very good but corner softness is visible, particularly at 17mm — a characteristic noted by both The Digital Picture and Imaging Resource in testing on EOS 5D-series bodies. Stopping down to f/5.6 brings significant corner improvement, and by f/8 the lens delivers excellent performance across the full frame. Diffraction begins to have a modest impact at f/11 and becomes more pronounced at f/16 and f/22.
On APS-C bodies, the lens only uses the central portion of its image circle where performance is strongest. The Digital Picture notes that the lens performs remarkably well on crop-sensor bodies, where the corner-softness visible on full-frame is essentially absent. Chromatic aberration is well controlled for an ultra-wide zoom, with the Super UD element doing measurable work at the edges. Barrel distortion is present at 17mm (as is typical for ultra-wide lenses), transitioning to mild pincushion distortion at the longer end. Vignetting is noticeable wide open at 17mm on full-frame but clears substantially by f/8. Flare resistance is good for an ultra-wide lens with a well-fitted petal hood. The circular diaphragm produces smooth out-of-focus backgrounds when subject separation allows.
In the Box

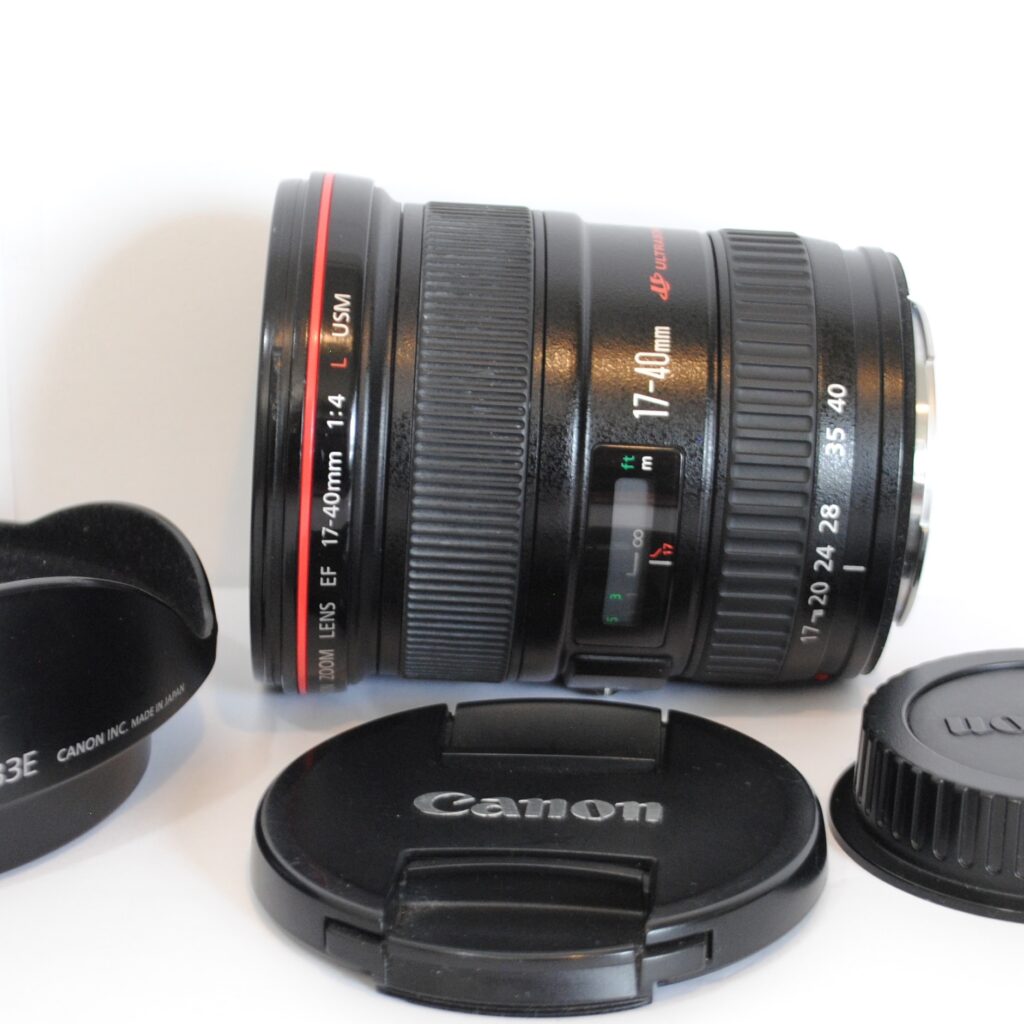

This Canon EF 17-40mm f/4L USM includes the front lens cap, rear lens cap, and the original Canon EW-83E petal-type lens hood.
Full Technical Specifications
| Lens Type | Ultra-wide-angle zoom |
|---|---|
| Focal Length | 17–40mm |
| Maximum Aperture | f/4 (constant) |
| Minimum Aperture | f/22 |
| Lens Mount | Canon EF |
| Optical Construction | 12 elements in 9 groups |
| Special Elements | 1 Super UD glass element; 1 moulded glass aspherical element; 2 replica aspherical elements |
| Diaphragm Blades | 7 (circular) |
| Minimum Focusing Distance | 0.28m (11 in.) — throughout zoom range |
| Maximum Magnification | 0.24x (at 35mm) |
| Autofocus | Ring USM with full-time mechanical manual focus override |
| Image Stabilizer | No |
| Filter Thread | 77mm (non-rotating) |
| Dimensions (Diameter × Length) | 83.5mm × 96.8mm |
| Weight | 500g (Canon Europe specification) |
| Angle of View (Full-frame) | 104° – 57°30′ (diagonal) |
| APS-C Equivalent Focal Range | Approx. 27–64mm (1.6x crop) |
| Lens Hood | EW-83E (included) |
| Lens Cap | E-77U / E-77II |
| Weather Sealing | Yes (mount, zoom ring, and focus ring; front element not sealed) |
| Year Introduced | 2003 |
Why Buy This Used Canon Wide-Angle Zoom Lens?
The Canon EF 17-40mm f/4L USM is one of those lenses with a genuinely long production run for good reason: it delivers L-series build quality and Ring USM autofocus at a price that has always made it accessible. Buying a used Canon EF 17-40mm f/4L USM lens lets you step into that value proposition further — professional glass at a fraction of the original retail price. For landscape photographers, real estate shooters, travellers, and anyone building out a full-frame Canon kit who wants the wide end covered with a weather-sealed optic, this lens has proven itself over two decades of field use.
Every lens listed at Good Used Cameras is inspected before listing — autofocus is confirmed operational, glass is checked for clarity, and condition is assessed honestly. This unit comes with front cap, rear cap, and the original EW-83E lens hood. It ships tracked from Vancouver Island, BC.
Sources
- Canon Camera Museum — EF17-40mm f/4L USM: https://global.canon/en/c-museum/product/ef373.html
- Canon Europe — EF 17-40mm f/4L USM Specifications: https://www.canon-europe.com/lenses/ef-17-40mm-f-4l-usm-lens/specification.html
- The Digital Picture — Canon EF 17-40mm f/4L USM Lens Review: https://www.the-digital-picture.com/Reviews/Canon-EF-17-40mm-f-4.0-L-USM-Lens-Review.aspx
- Imaging Resource — Canon EF 17-40mm f/4L USM Review: https://www.imaging-resource.com/lenses/canon/ef-17-40mm-f4l-usm/review/
✅ Fact-checked against Canon Camera Museum, Canon Europe official specifications, The Digital Picture, and Imaging Resource. All specifications confirmed accurate.
